The Aeon API allows developers to perform actions in Aeon and build integrations outside of the installed Aeon components. For example, the API allows the developers to connect to the database and change a transaction status.

Installation

Using the Aeon API requires Aeon version 4+. The Aeon API requires the DotNetCore components. This installer is provided by Microsoft.

Note: Aeon API and DotNetCore are not part of the default Aeon install.


The latest installer for the Aeon Web API is available on the Aeon Downloads page.

Please contact Atlas Systems at 1-800-567-7401 x1 or support@atlas-sys.com for the credentials to download the installer.

Service hours are Monday through Friday 8am-5pm eastern time, excluding Federal holidays.

Swagger Documentation

The Aeon API has developer-oriented documentation built-in. You can get to the API Swagger documentation at https://servername/aeon/api/swagger/.

*Replace 'servername' with the IP address or DNS.

Available Endpoints

To use the reshelved endpoint, you must first update your Aeon server and the client to version 4.1, then update your Aeon API to version 1.2.0 with the installer linked above. All other endpoints are available on the previous version of the Aeon API, version 1.2.0.

Queues


Get /api/Queues
Returns queues configured in Aeon.
Get /api/Queues/{id}
Returns a Queue identified by ID.
Get

/api/Queues/{id}/requests
Returns requests associated with the queue identified by ID.

Requests


Get /api/Requests/{id}
Returns a request identified by transaction number.
Get /api/Requests/{id}/nextsteps
Returns next step process names for the transaction identified by ID.
Post

/api/Requests/{id}/route
Routes a transaction to the given transaction or photoduplication status. Routing rules will be applied.
Get /api/Requests/{id}/routes
Returns a list of the valid transactions and photoduplication queues a request may be routed to.
Post  /api/Requests/Batch/?{parameters}

Returns a list of requests for the given barcode. Unlike the RequestBarcodes/Reshelved endpoints, the endpoint allows for nonstandard characters.

API Call:

  • The request will check to see if the provided transaction number has a TransactionStatus of Awaiting Item Reshelving. If so, the API will route the request to the Item Reshelved status, and then to Request Finished status.
  • The custom queue Item Reshelved will act as a transitory status that will trigger requests to automatically route to the Request Finished status.
  • If activeOnly is set to true, only active requests will be returned.
Post /api/Requests/Batch/Reshelved

Reshelves request based on the given barcode. Unlike the RequestBarcodes/Reshelved endpoints, the endpoint allows for nonstandard characters.

API Call:

  • Request process:
    1. The request will search for the transaction record whose ItemNumber field matches the barcode provided in the API request. The ItemNumber field should be the only location used for the barcode number since Aeon assumes this field is the barcode and will not check any other fields for the barcode number.
    2. The request will then check to see if the provided transaction number has a TransactionStatus of Awaiting Item Reshelving. If so, the API will route the request to the Item Reshelved status, and then to Request Finished status.
  • The custom queue Item Reshelved will act as a transitory status that will trigger requests to automatically route to the Request Finished status.
  •
Post /api/RequestBarcodes/{barcode}/reshelved
The RequestBarcode endpoints have been replaced by the Requests/Batch endpoints and are now considered deprecated.

Reshelves request based on the given barcode.

API Call:

  • Request process:
    1. The request will search for the transaction record whose ItemNumber field matches the barcode provided in the API request. The ItemNumber field should be the only location used for the barcode number since Aeon assumes this field is the barcode and will not check any other fields for the barcode number.
    2. The request will then check to see if the provided transaction number has a TransactionStatus of Awaiting Item Reshelving. If so, the API will route the request to the Item Reshelved status, and then to Request Finished status.
  • The custom queue Item Reshelved will act as a transitory status that will trigger requests to automatically route to the Request Finished status.

Post

 /api/RequestBarcodes/{id}/reshelved
The RequestBarcode endpoints have been replaced by the Requests/Batch endpoints and are now considered deprecated.

Reshelves request based on a given transaction number.

API Call:

  • The request will check to see if the provided transaction number has a TransactionStatus of Awaiting Item Reshelving. If so, the API will route the request to the Item Reshelved status, and then to Request Finished status.
  • The custom queue Item Reshelved will act as a transitory status that will trigger requests to automatically route to the Request Finished status.

System Information


Get /api/SystemInformation/Version
Returns the version of the Web API.

Token


Post /api/Token
Retrieves an authentication token for the provided staff credentials.

Users


Get /api/Users/{username}
Returns a user identified by username.

Authentication

Most of the actions will require authentication. There are 2 ways to authenticate in the Aeon API: Aeon API Key or staff tokens.

API Key

You can create an API key in the Aeon Customization Manager. More information on API keys is available at Configuring the Aeon Web Platform.

The Base Webservice URL isn't relevant for the API so you can just enter the API URL: https://yourservername.aeon.atlas-sys.com/aeon/api/.

Staff Token

The staff tokens will use the POST Token operation where you'll post an Aeon staff username and password. It will return a token which should be used as a BEARER authentication header.

Testing the Authentication

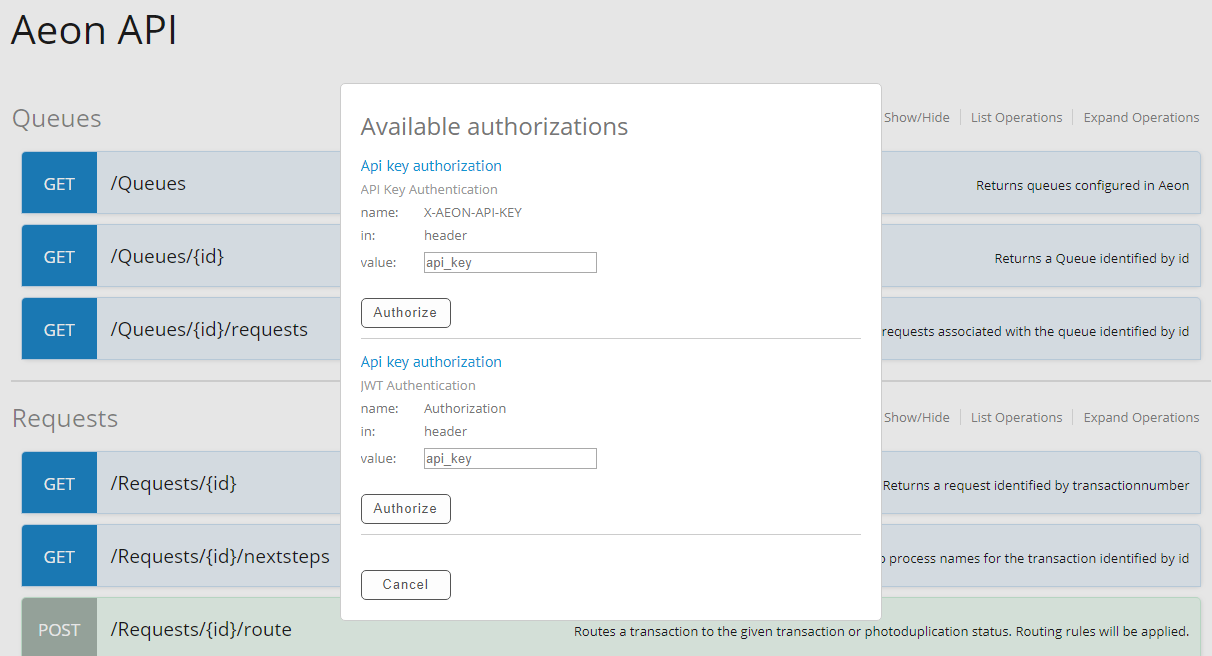

To test in the swagger interface, you can click on Authorize in the top right corner of the swagger interface. A pop-up like an image shown below will appear.

  • The first option (Name: X-AEON-API-KEY) is for the API Key; Just paste the API key directly into the value and click authorize and you should be good.
  • For the staff token authentication, note that it currently has a 5-minute timeout. You would need to POST to the Token operation to get a JWTvalue. In the swagger interface, you would enter BEARER <JWT value from Token response>
As of Aeon 4.1, the token controller used to obtain a JWT token for authentication has been upgraded to use the new staff password changes implemented in the 4.1 security release. The Web API does not support changing staff passwords at this time; therefore, if the staff account that is being used to obtain a token is locked or has an expired password, the API will not generate a token. Please change your staff password in the Staff Manager prior to generating JWT credentials after upgrading to v4.1 (this includes new installs of v4.1).

Additional Information

If there is specific functionality that you are looking to use to integrate with your services, we encourage you to submit enhancements & ideas to Uservoice at https://uservoice.atlas-sys.com/. Thanks!
